Basic Specifications
| Builder: | Pearson Yachts, A Division of Grumman Allied Industries |
| Designer | William H. Shaw |
| Year: | 1977 |
| Model: | 323 |
| Model No: | 58 |
| Hull No: | 42 |
| LOA: | 32' 3" |
| LWL: | 27' 6" |
| Beam: | 10' 2.75" |
| Mast Height: | 45' 4" above DWL |
| Displacement: | 12,800 lbs |
| Ballast | 4500 lbs (internal, lead) |
| Power: | Universal Atomic-4 (diesel was optional) |

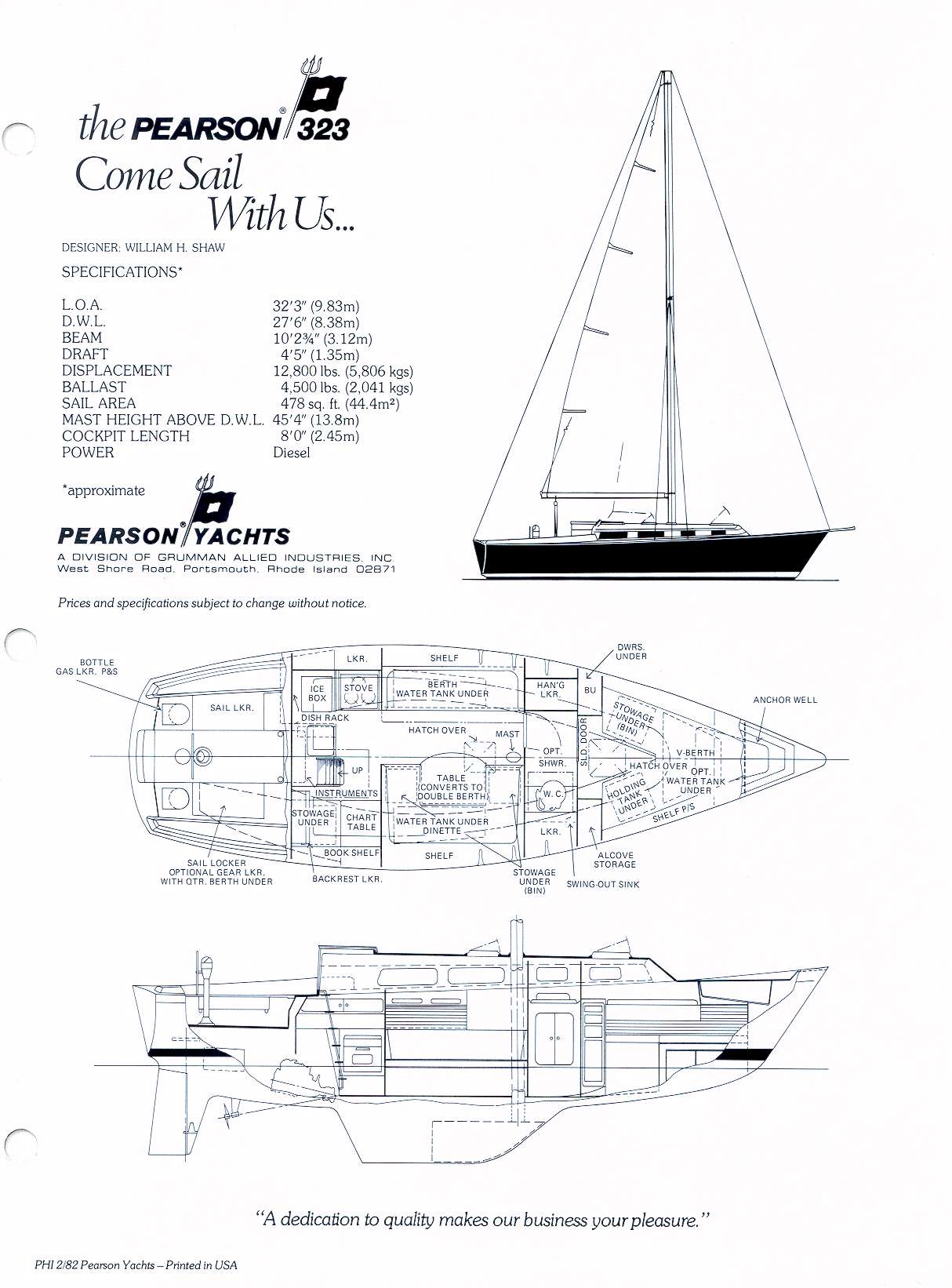

(source: Manufacturer's brochure) | |
Rig Dimensions
| Sail Area: | 478 sq. ft. |
| Main Area: | 194 sq. ft. |
| ForeTriangle: | 283 sq. ft. |
| I | 41.0 ft. |
| J | 13.8 ft. |
| P | 36.0 ft. |
| E | 10.8 ft. |
(source: http://www.pearsoninfo.net/323/323.htm) | |
Design Ratios
| Hull Speed | 7.03 knots |
| SA/D | 14.0 |
| D/L | 275 |
| BR | 36% |
| L/B | 3.15 |
| LWL/B | 2.68 |
| OR | 15% |
| CSF | 1.75 |
| MCR | 30.6 |
| M/F | 0.69 |
| PHRF | 180 (base rating) |
(source: http://www.pearsoninfo.net/323/323.htm) | |
